Description

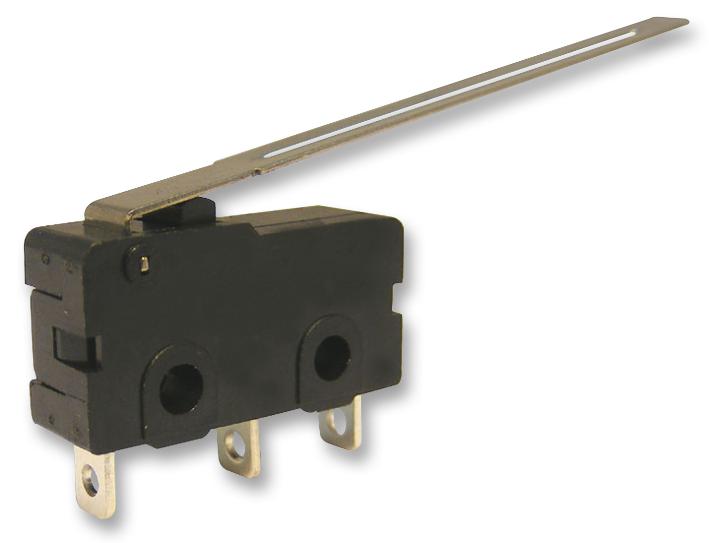

MULTICOMP PRO - M140T01-AE0507A - Microswitch, Snap Action, Long Lever, SPDT, Solder, 5 A
- Microswitch Type: Snap Action
 - Microswitch Actuator: Long Lever
 - Contact Configuration: SPDT
 - Switch Terminals: Solder
 - Contact Current Max: 5A
 - Contact Voltage DC Nom: -
 - Product Range: M140T01 Series
 - Contact Voltage AC Nom: 250VAC
 - Operating Force Max: 45gf
 - SVHC: No SVHC (07-Jul-2017)
 - Actuation Type: Long Lever
 - Actuator Type: Long Lever
 - Contact Current @ Contact Voltage AC Max: 5A
 - Contact Current @ Contact Voltage AC Min: 3A
 - Contact Current AC Max: 5A
 - Contact Resistance: 50mohm
 - Contact Voltage AC Max: 250V
 - Contact Voltage AC Min: 125V
 - External Depth: 6.4mm
 - External Width: 19.8mm
 - Height: 10.6mm
 - Insulation Resistance: 100Mohm
 - No. of Mechanical Operations: 100000
 - Operating Force: 0.44N
 - Operating Temperature Max: 80°C
 - Operating Temperature Min: -20°C
 - Pre-travel: 3.5mm
 - Switch Case: PBT (Polybutylene Terephthalate)
 - Switch Operation: Off-On
