LVR008NK PolySwitch, 0.08A LITTELFUSE

LITTELFUSESKU: LVR008NK Order code: 1175832

Price:
Sale price€1,14

Tax included Shipping calculated at checkout

Stock:
In stock (2133 units), ready to be shipped

Documents et téléchargements

Description

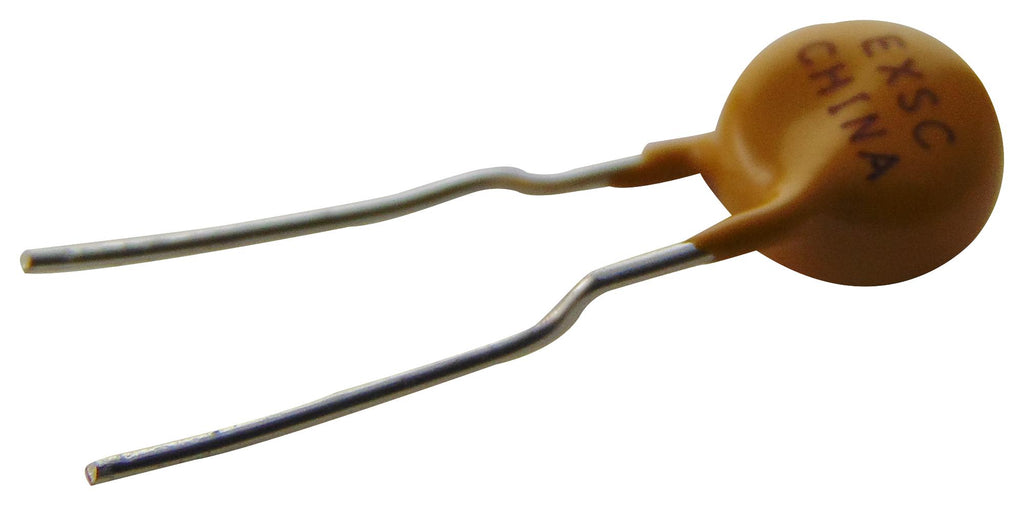

LITTELFUSE - LVR008NK - Resettable Fuse, PPTC, PolySwitch LVR, 240 VAC, 80 mA, 190 mA, 10 s, Round

  • Thermistor Mounting: Through Hole
  • Product Range: PolySwitch LVR Series
  • Holding Current: 80mA
  • Tripping Current: 190mA
  • Voltage Rating: 240VAC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • External Depth: 3.8mm
  • External Length / Height: 12.9mm
  • External Width: 8.3mm
  • Holding Current Max Ih: 0.08A
  • Initial Resistance Max: 12ohm
  • Initial Resistance Min: 7.4ohm
  • Lead Length: 7.6mm
  • Lead Spacing: 5.8mm
  • Operating Voltage: 240V
  • PTC Fuse Case Style: Radial Leaded
  • Response Time: 15s
  • Thermistor Type: PTC Resettable Fuse
