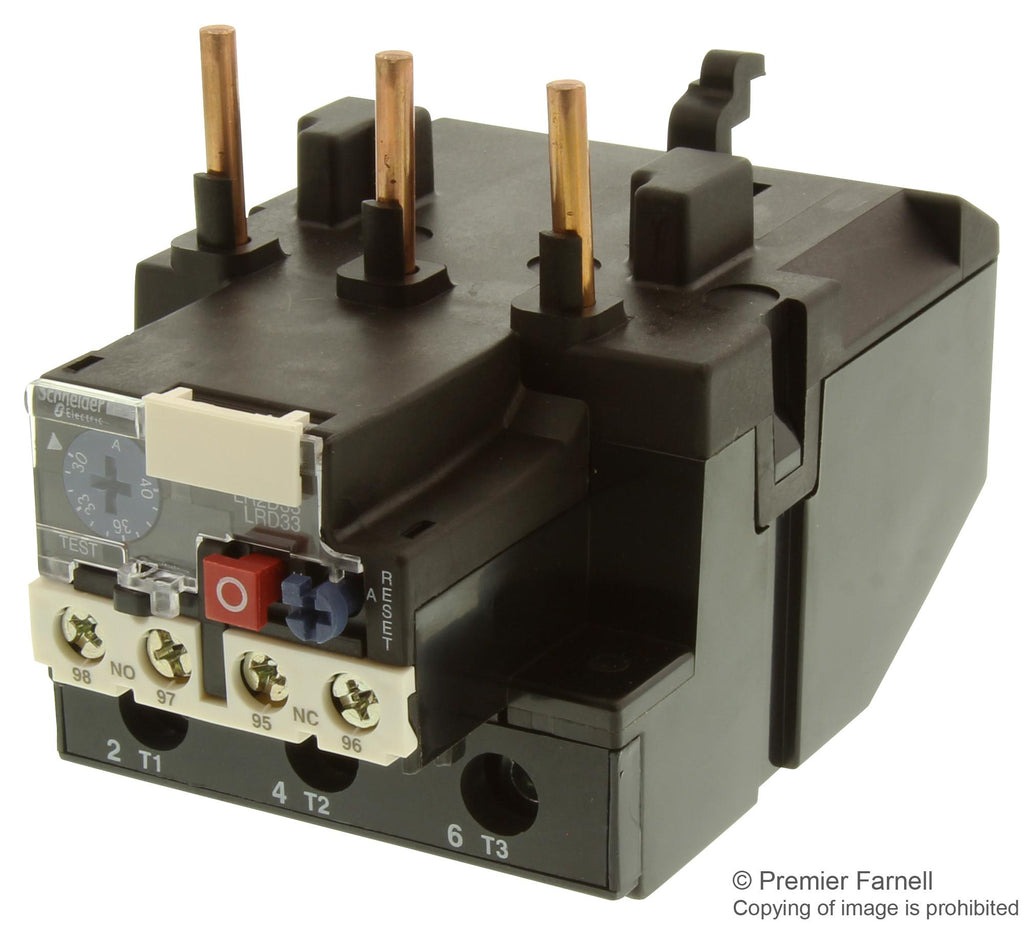

SCHNEIDER ELECTRIC - LRD3355 - Overload Relay, LRD3, 30 A, 40 A, TeSys Deca Overload Relay
- Overload Adjustment Current Min: 30A
- Overload Adjustment Current Max: 40A
- Coil Voltage AC Max: -
- Coil Voltage DC Max: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 109mm
- External Width: 70mm
- For Use With: LC1D40 to LC1D80 Contactor
- Height: 54mm
- IP / NEMA Rating: IP2X
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Standard: EN60947 - 1
- Supply Voltage Max: 600V
- Weight: 0.51kg
