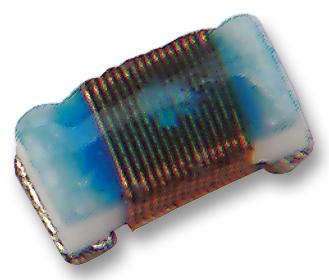

LQW18AN22NG00D Inductor, 22NH, 0603 Case Murata

MURATASKU: LQW18AN22NG00D Order code: 9527982

Price:
Sale price€0,21

Tax included Shipping calculated at checkout

Stock:
In stock (2964 units), ready to be shipped

Documents et téléchargements

Description

MURATA - LQW18AN22NG00D - Wirewound Inductor, 22 nH, 0.17 ohm, 4.6 GHz, 500 mA, 0603 [1608 Metric], LQW18A_00

  • Inductance: 22nH
  • Product Range: LQW18A_00 Series
  • DC Current Rating: 500mA
  • High Frequency Inductor Case: 0603 [1608 Metric]
  • Inductor Construction: Wirewound
  • DC Resistance Max: 0.17ohm
  • Inductance Tolerance: ± 2%
  • Self Resonant Frequency Min: 4.6GHz
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 0.8mm
  • External Length / Height: 1.6mm
  • External Width: 0.8mm
  • Inductance Min: 22nH
  • Inductor Case Style: 0603 [1608 Metric]
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
