Description

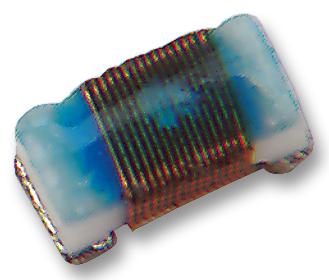

MURATA - LQW18AN12NG00D - Wirewound Inductor, 12 nH, 0.13 ohm, 6 GHz, 600 mA, 0603 [1608 Metric], LQW18A_00
- Inductance: 12nH
- Product Range: LQW18A_00 Series
- DC Current Rating: 600mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.13ohm
- Inductance Tolerance: ± 2%
- Self Resonant Frequency Min: 6GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.8mm
- External Length / Height: 1.6mm
- External Width: 0.8mm
- Inductor Case Style: 0603 [1608 Metric]
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
