Description

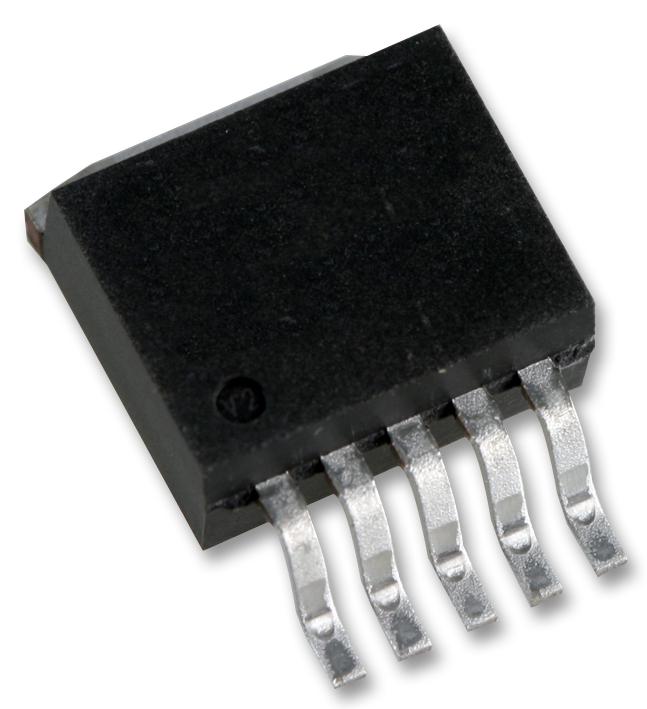

ONSEMI - LM2576D2T-ADJG - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 7V-40Vin, 1.23V-37Vout, 3Aout, TO-263-5
- Topology: Buck (Step Down)
- Input Voltage Min: 7V
- Input Voltage Max: 40V
- No. of Outputs: 1Outputs
- DC / DC Converter IC Case: TO-263
- No. of Pins: 5Pins
- Output Current: 3A
- Output Voltage Min: 1.23V
- Output Voltage Max: 37V
- Switching Frequency: 52kHz
- Operating Temperature Max: 125°C
- Product Range: LM2576 Series
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Accuracy %: 4%
- Base Number: 2576
- Frequency: 52kHz
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 3A
- Output Voltage: 37V
- Primary Input Voltage: 40V
- Supply Voltage Min: 8V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Step Down Switching Regulator
