Description

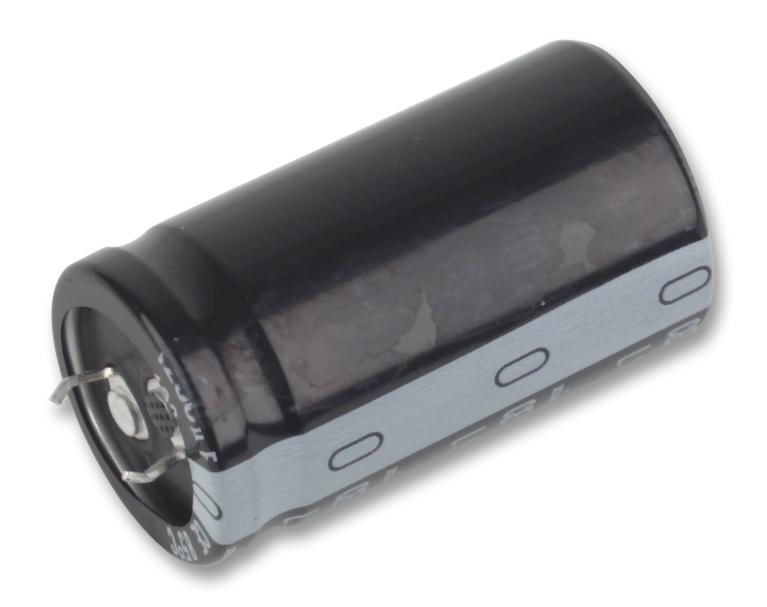

NICHICON - LLS1H103MELC - Electrolytic Capacitor, Snap-in, 10000 µF, 50 V, ± 20%, Snap-In, 3000 hours @ 85°C
- Capacitance: 10000µF
- Voltage Rating: 50V
- Product Range: LS Series
- Lifetime @ Temperature: 3000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 35mm
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 35mm
- No. of Pins: 2Pins
- Operating Life Temperature: 85°C
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 3000h
- PCB Hole Diameter: 2mm
- Ripple Current AC: 4.92A
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 50V
