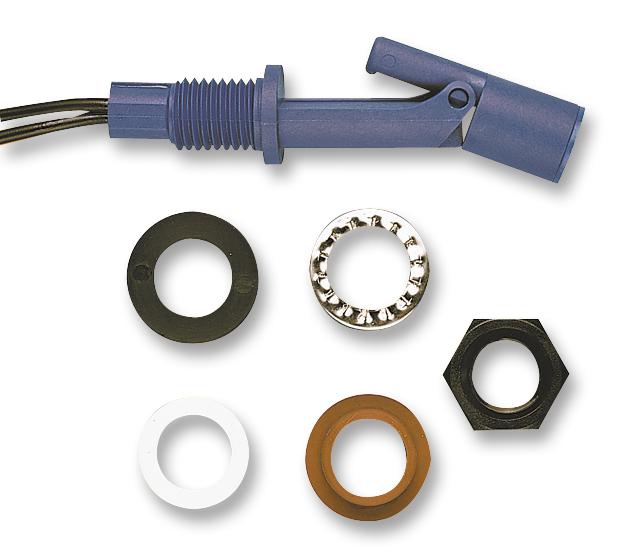

TE CONNECTIVITY - LDS803-51 - Float Switch, LDS Series, Horizontal, Close Differential, SPST-NO, Polypropylene, 4 bar
- Operating Pressure Max: 4bar
- Sensor Body Material: PP (Polypropylene)
- Output Current: 1A
- Product Range: LDS Series
- Body Material: PP (Polypropylene)
- Case Material: Polypropylene
- Colour: Charcoal
- Contact Configuration: SPST-NO
- Contact Current AC Max: 1A
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 200VDC
- External Length / Height: 99.7mm
- Lead Length: 0.5m
- Material: Polypropylene
- Operating Pressure Range: 0bar to 4bar
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Panel Cutout Size: 16.5 mm
- Panel Thickness Max: 10mm
- Panel Thickness Min: 1mm
- Power Rating: 15W
- Pressure Max: 4bar
- Resistive Current Rating: 1A
- Sensor Output: SPST-NO / SPST-NC
- Specific Gravity of Liquid Min: 0.70
- Switch Operation: Off-On
