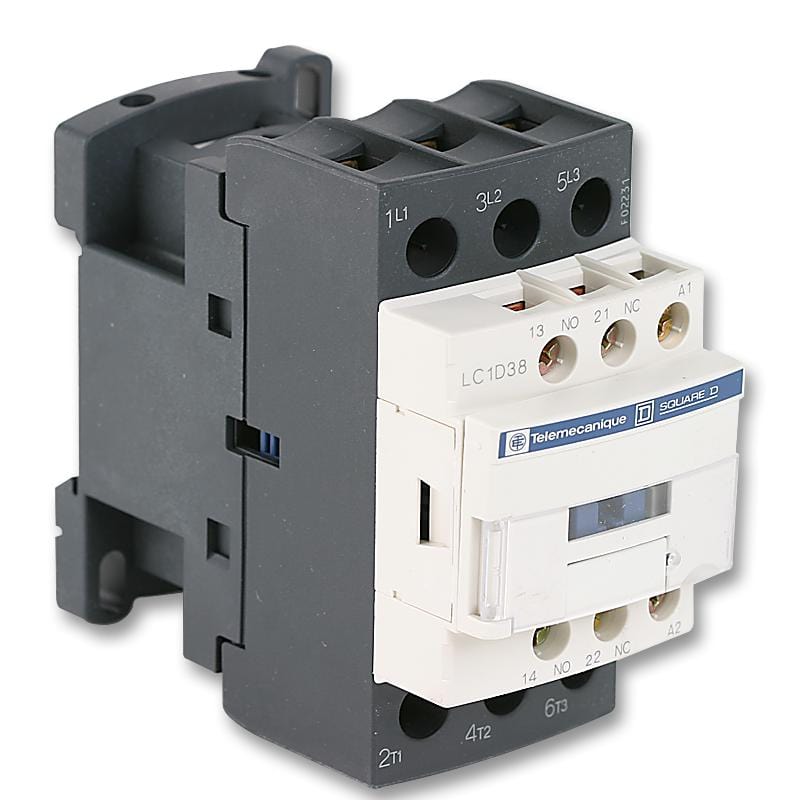

SCHNEIDER ELECTRIC - LC1D38F7 - Contactor, LC1D, 38 A, DIN Rail, 110 VAC, DPDT, 3 Pole, 18.5 kW
- Load Current Inductive: 38A
- Relay Mounting: DIN Rail
- Operating Voltage: 110VAC
- Contact Configuration: DPDT
- No. of Poles: 3 Pole
- Switching Power AC3: 18.5kW
- Switching Current AC1: 50A
- Coil Voltage VAC Nom: 110V
- Coil Voltage VDC Nom: -
- Switching Power AC1: 5hp
- Load Current Resistive: 50A
- Switching Current AC3: 38A
- Product Range: TeSys D Series
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 92mm
- External Length / Height: 85mm
- External Width: 45mm
- Operating Temperature Max: 60°C
