Description

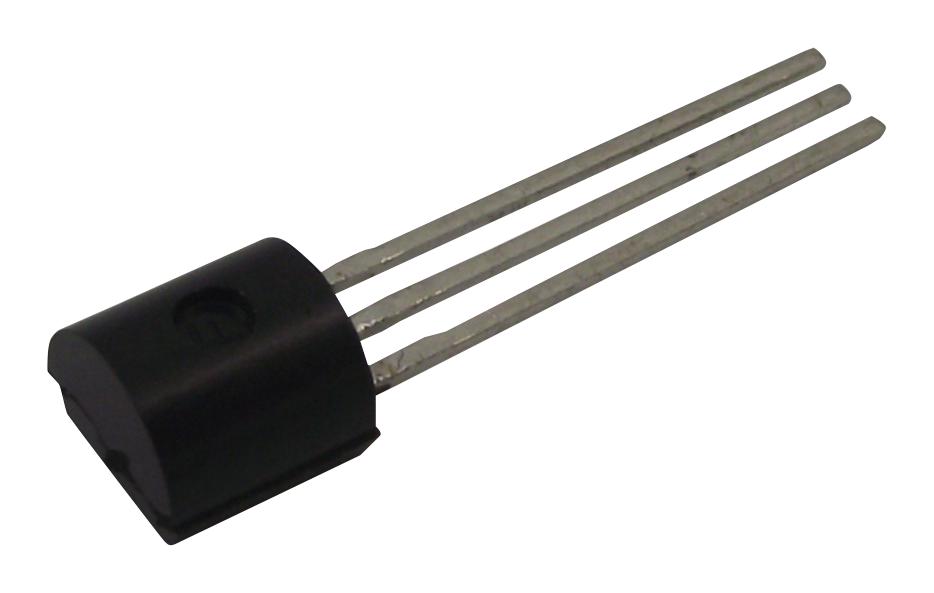

STMICROELECTRONICS - L78L06ABZ - Linear Voltage Regulator, 7806, Fixed, 3-Terminal, Positive, 12V To 30V In, 6V And 0.1A Out, TO-92-3
- Fixed Output Voltage Nom.: 6V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Input Voltage Min: 12V
- Input Voltage Max: 30V
- Product Range: 7806 Voltage Regulators
- Output Current: 100mA
- Output Type: Fixed
- Linear Regulator Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Voltage Max: 6V
- Output Voltage Nom.: 6V
- Primary Input Voltage: 12V
- Supply Voltage Max: 30V
- Supply Voltage Min: 8.5V
- Termination Type: Through Hole
- Voltage Regulator Type: 3-Terminal Fixed Positive
