Description

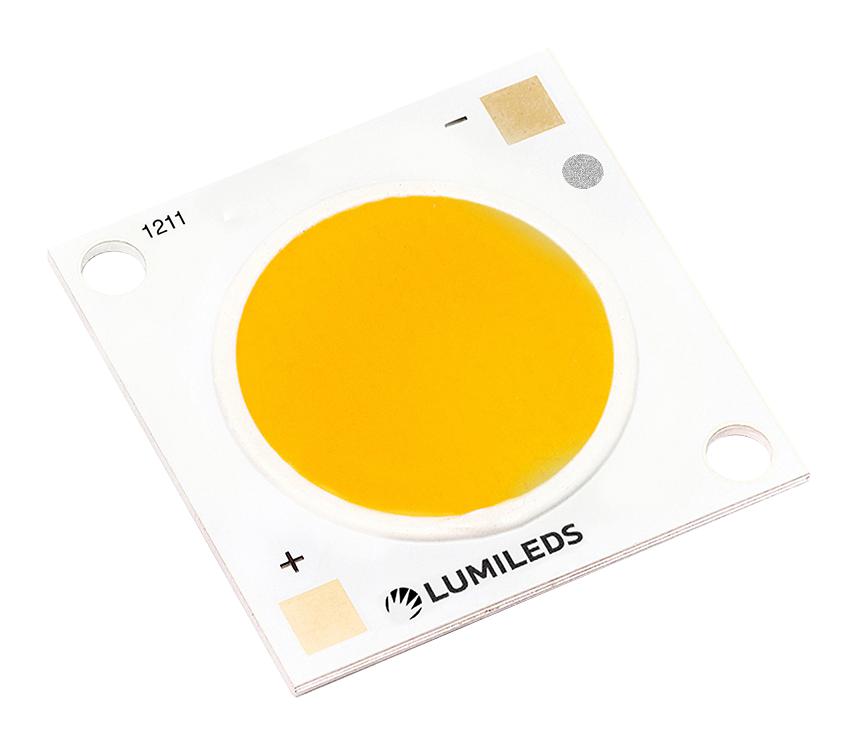

LUMILEDS - L2C5-FS001211E1900 - High Brightness LED, FreshFocus Technology, L2C5 Series, White, 115 °, 5130 lm, 2.4 A
- COB Colour: Cool White
- Color Rendering Index Max: -
- Power Rating: -
- Luminous Flux @ Test: 5130lm
- Forward Current @ Test: 1.2A
- Viewing Angle: 115°
- Forward Voltage VF Typ: 34.8V
- Nominal CCT (K): 6500 K
- COB Length: 28mm
- COB Width: 28mm
- Opto Case Style: SMD-2, No Lead
- Lumens / Watt @ Current Test: 123lm/W
- Light Emitting Surface: 19mm
- Lens Type: -
- Lens Shape: Round with Flat Top
- Height: 1.5mm
- Product Range: L2C5 Series
- SVHC: No SVHC (07-Jul-2017)
- Forward Current If Max: 2.4A
- Forward Voltage @ Test: 34.8V
- LED Colour: White
- Power @ Test: 41.8W
