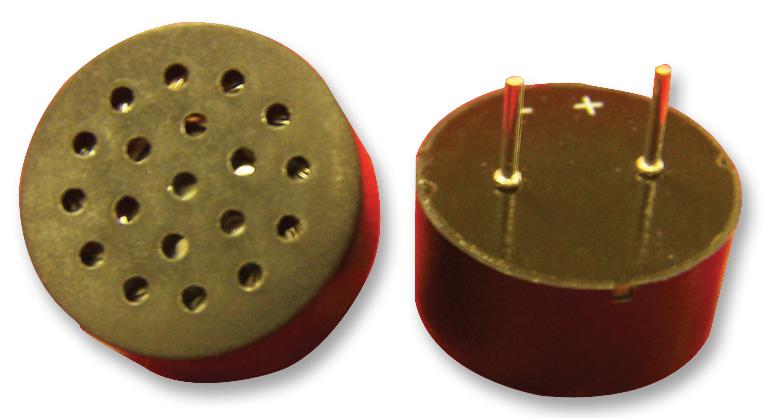

KINGSTATE - KSSG1708 - Speaker, 0.2 W, 8 ohm, 1.5 kHz to 20 kHz
- Transducer Function: Speaker
- Power Rating RMS: 200mW
- Impedance: 8ohm
- Sensitivity (dB): -
- Resonant Frequency: 1.5kHz
- Frequency Response Min: 1.5kHz
- Frequency Response Max: 20kHz
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- External Depth: 17mm
- External Diameter: 17mm
- External Height: 8mm
- External Length / Height: 8mm
- External Width: 8mm
- Lead Spacing: 7.6mm
- Magnet Weight: 2g
- Material: PBT +20% Glass (Black)
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Pin Length: 5.8mm
- Power Max: 0.5 W
- Sound Level Distance: 10cm
- Sound Level SPL: 87dB
