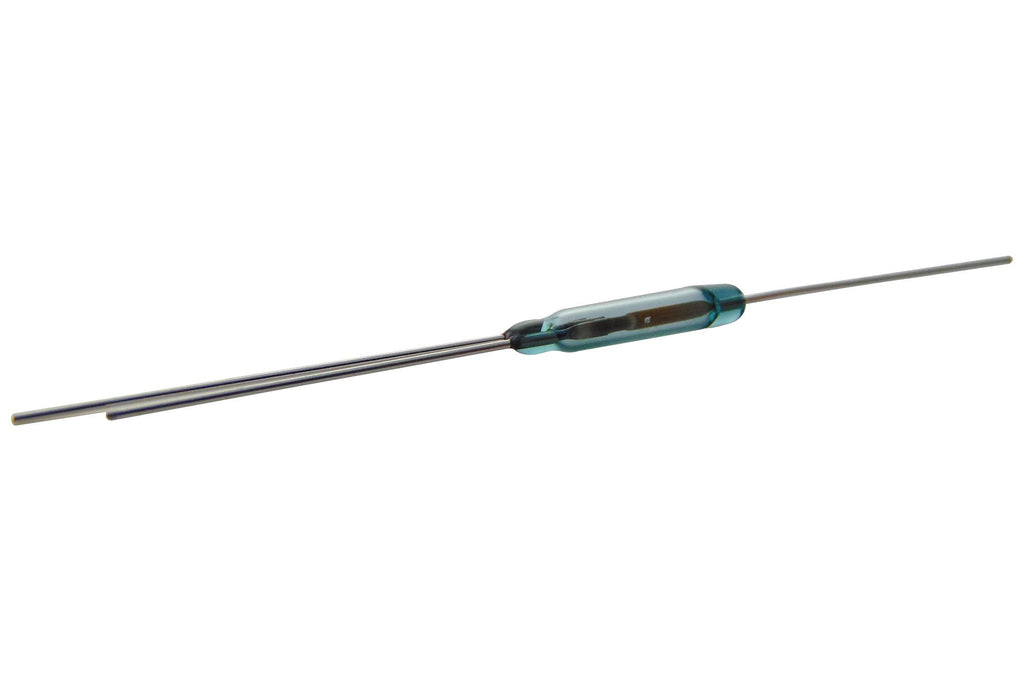

KSK-1C90U-2034 Reed Switch, 20W Standexmeder

STANDEXMEDERSKU: KSK-1C90U-2034 Order code: 1079472

Price:
Sale price€8,35

Tax included Shipping calculated at checkout

Stock:
In stock (3525 units), ready to be shipped

Documents et téléchargements

Description

STANDEXMEDER - KSK-1C90U-2034 - Reed Switch, KSK, SPDT, 1 A, 175 V, 10 W

  • Product Range: KSK Series
  • Contact Configuration: SPDT
  • Switch Mounting: -
  • Contact Current Max: 1A
  • Switching Voltage Max: 175V
  • Switching Power Max: 10W
  • Contact Resistance Max: 0.25ohm
  • Operate AT Min: 20AT
  • Operate AT Max: 34AT
  • SVHC: No SVHC (15-Jan-2018)
  • Body Diameter: 2.54mm
  • Body Length: 14mm
  • Body Material: Glass
  • Breakdown Voltage Vbr: 200VDC
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 500mA
  • Contact Resistance: 150mohm
  • DC Power: 10W
  • Insulation Resistance: 1000Mohm
  • Length: 56.1mm
  • Off Switching Time: 1.5
  • On Switching Time: 0.7
  • Operating Temperature Max: 130°C
  • Operating Temperature Min: -20°C
  • Operation Ampere Turns Range: 10AT to 40AT
  • Pin Diameter: 1.2mm
  • Switch Case: Glass
  • Switching Current AC Max: 0.5A
  • Switching Current DC Max: 0.5A
  • Switching Voltage AC / DC Max: 175VDC
