Description

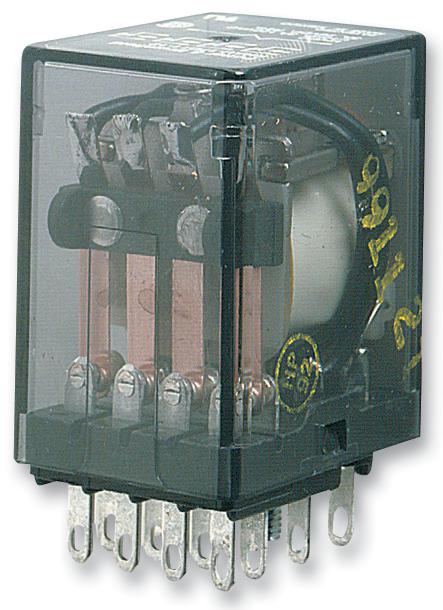

POTTER&BRUMFIELD - TE CONNECTIVITY - KHAU-17D11-24 - General Purpose Relay, KHA Series, Power, Non Latching, 4PDT, 24 VDC, 5 A
- Contact Configuration: 4PDT
- Coil Voltage: 24VDC
- Contact Current: 5A
- Product Range: KHA Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 120VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 28VDC
- Contact Material: Silver
- Coil Resistance: 690ohm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA, UL
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 3A
- Contact Current DC Max: 3A
- Contact Current Max: 3A
- Contact Voltage AC Max: 120V
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Max: 28V
- Contact Voltage DC Nom: 28V
- External Depth: 34.9mm
- External Height: 28.2mm
- External Length / Height: 28.2mm
- External Width: 21.8mm
- Nom Operating Power: 900mW
- Relay Type: Power - General Purpose
