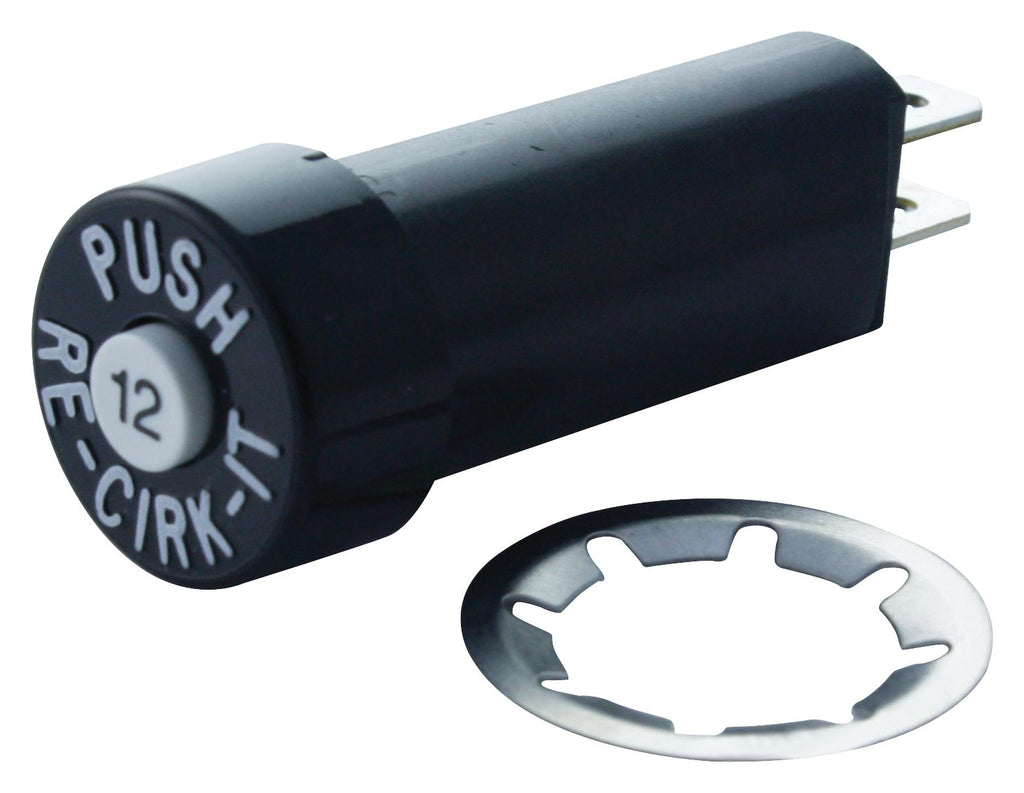

EATON - KD1-12 - Thermal Circuit Breaker, KD1, 12 A, 1 Pole, 50 VDC, 250 VAC, Panel
- Product Range: KD1 Series
- Current Rating: 12A
- No. of Poles: 1 Pole
- Voltage Rating V DC: 50VDC
- Voltage Rating VAC: 250VAC
- Circuit Breaker Mounting: Panel
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Bezel Depth: 9.525mm
- Bezel Width: 19.05mm
- Breaking Capacity Current AC: 1000A
- Breaking Capacity Current DC: 200A
- External Depth: 35.7mm
- Insulation Resistance: 100Mohm
- Insulation Voltage: 500VDC
- No. of Mechanical Operations: 5000
- Operating Frequency Max: 60Hz
- Panel Cutout Diameter: 8.5mm
- Supply Frequency: 50Hz
