K3MALC100240VAC Meter, Temperature, 100/240Vac Omron

OMRONSKU: K3MALC100240VAC Order code: 1350607

Price:
Sale price€381,45

Tax included Shipping calculated at checkout

Stock:
Only 1 unit left

Documenten en downloads

Description

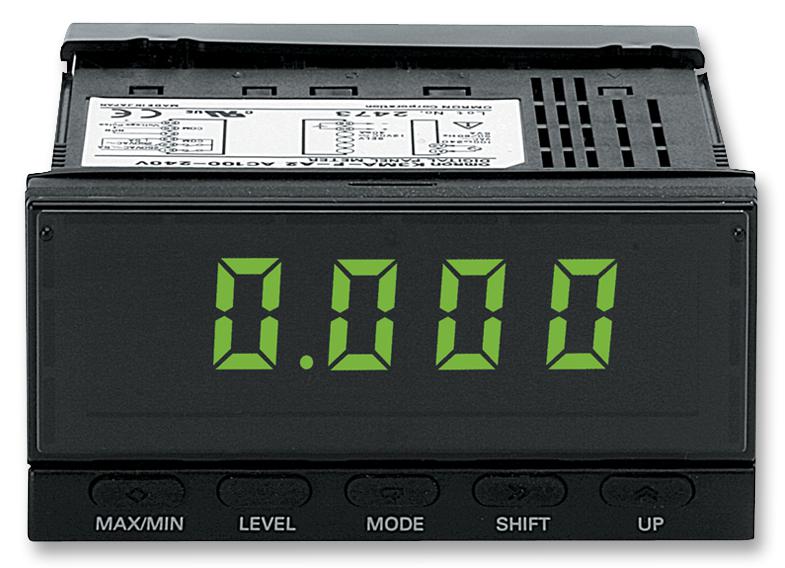

OMRON - K3MALC100240VAC - Digital Panel Meter, 100-240VAC, 4 Digits, Temperature, -200°C to +850°C, -300°F to +1500°F

  • No. of Digits / Alpha: 4
  • Meter Function: Temperature
  • Meter Range: -200°C to +850°C, -300°F to +1500°F
  • Digit Height: 14.2mm
  • Panel Cutout Height: 45mm
  • Panel Cutout Width: 92mm
  • Supply Voltage Min: 100VAC
  • Supply Voltage Max: 240VAC
  • Operating Temperature Min: -10°C
  • Operating Temperature Max: 55°C
  • Product Range: -
  • Approval Bodies: EN, UL
  • Contact Voltage DC Max: 150VDC
  • Current Rating: 5A
  • Display: 2 Colour LCD Display
  • External Depth: 80mm
  • External Length / Height: 96mm
  • External Width: 48mm
  • Input: Platinum-resistance Thermometer or Thermocouple
  • No. of Analogue Inputs: 1
  • No. of Digital Outputs: 1
  • No. of Outputs: 1Outputs
  • Operating Temperature Range: -10°C to +55°C
  • Power Consumption: 6VA
  • Supply Voltage AC Max: 240VAC
  • Supply Voltage AC Min: 100VAC
  • Weight: 200g
