JW1FSN-DC48V Relay, DPDT, 277VAC, 30Vdc, 5A Panasonic

PANASONICSKU: JW1FSN-DC48V Order code: 2095689

Price:
Sale price€3,74

Tax included Shipping calculated at checkout

Stock:
In stock (74 units), ready to be shipped

Documents et téléchargements

Description

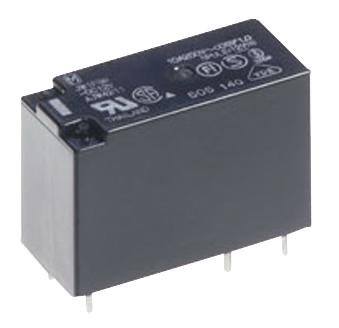

PANASONIC - JW1FSN-DC48V - General Purpose Relay, JW Series, Power, Non Latching, DPDT, 48 VDC, 5 A

  • Contact Configuration: DPDT
  • Coil Voltage: 48VDC
  • Contact Current: 5A
  • Product Range: JW Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 4.4kohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 11mA
  • Coil Voltage VDC Nom: 48V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 28.6mm
  • External Height: 20mm
  • External Width: 12.8mm
  • Nom Operating Power: 530mW
  • Relay Type: Power
