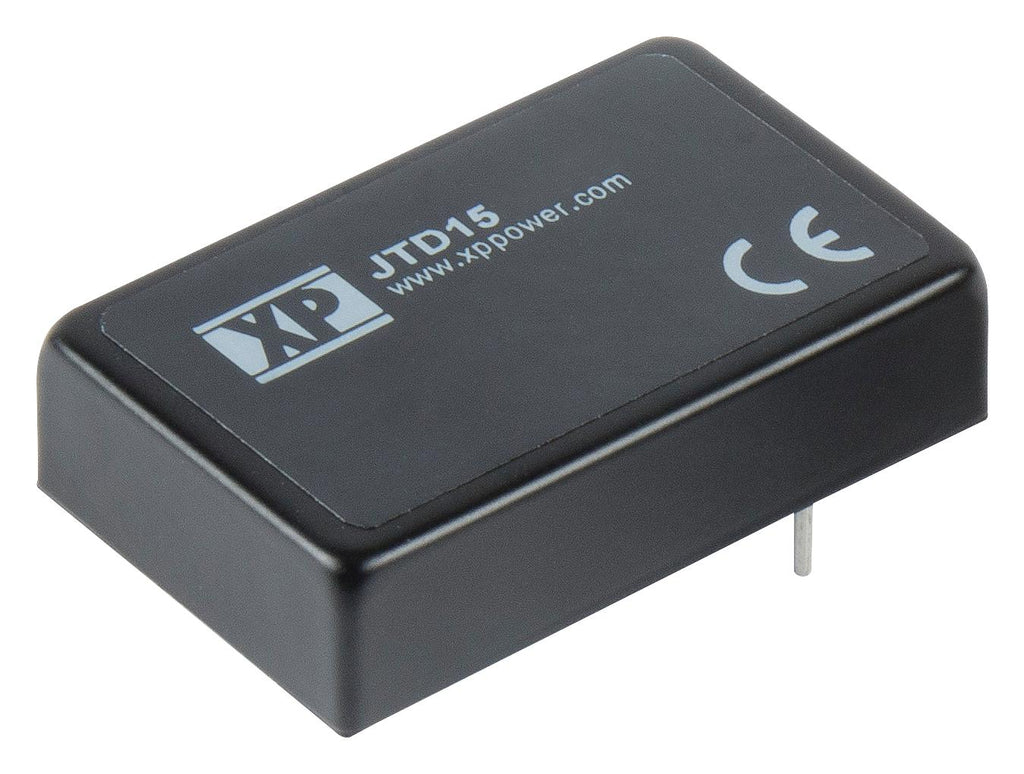

XP POWER - JTD1524D12 - Isolated Through Hole DC/DC Converter, ITE, 4:1, 15 W, 2 Output, 12 V, 625 mA
- No. of Outputs: 2 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 625mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 625mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JTD15 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 25.4mm
- Height: 10.4mm
- Depth: 40.6mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: EN
