Description

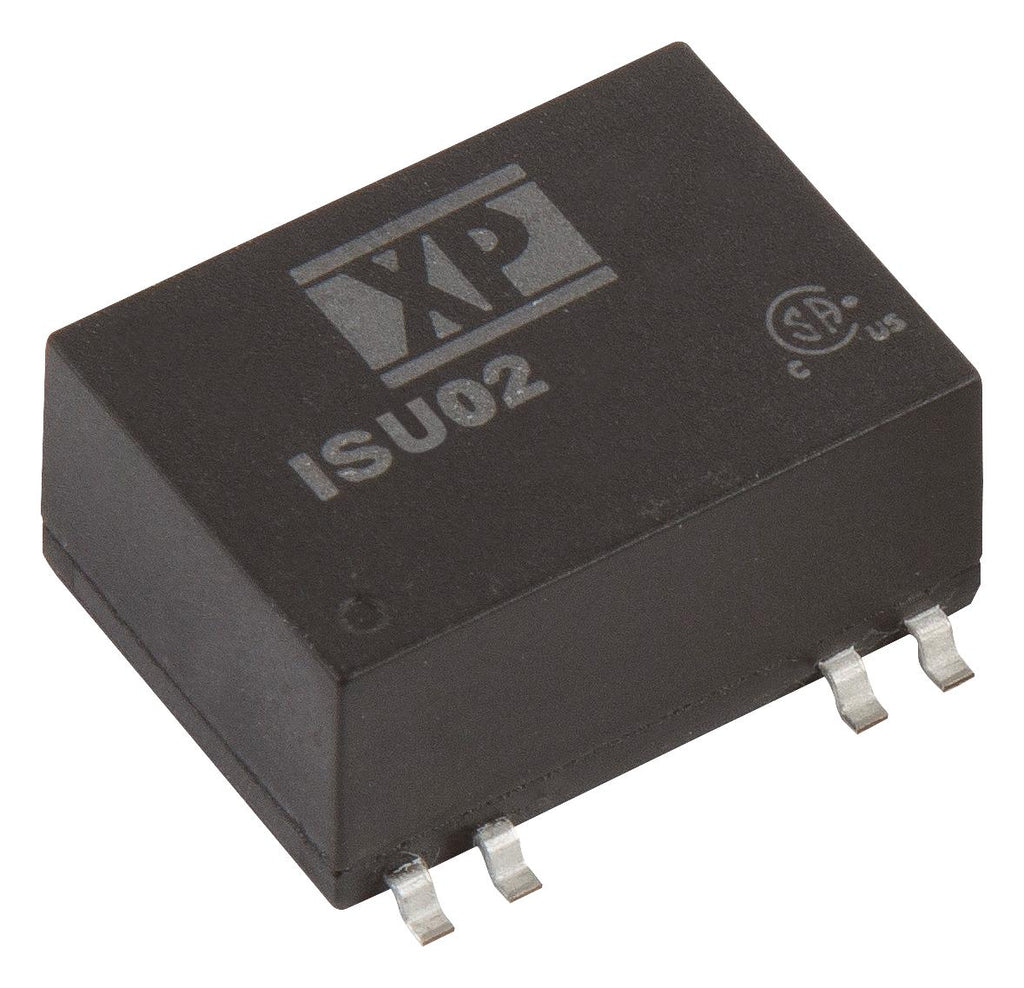

XP POWER - ISU0248D12 - Isolated Surface Mount DC/DC Converter, ITE, 4:1, 2 W, 2 Output, 12 V, 83 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 83mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 83mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: ISU02 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 75V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 14.9mm
- Height: 8.7mm
- Depth: 19mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: IEC, UL
