Description

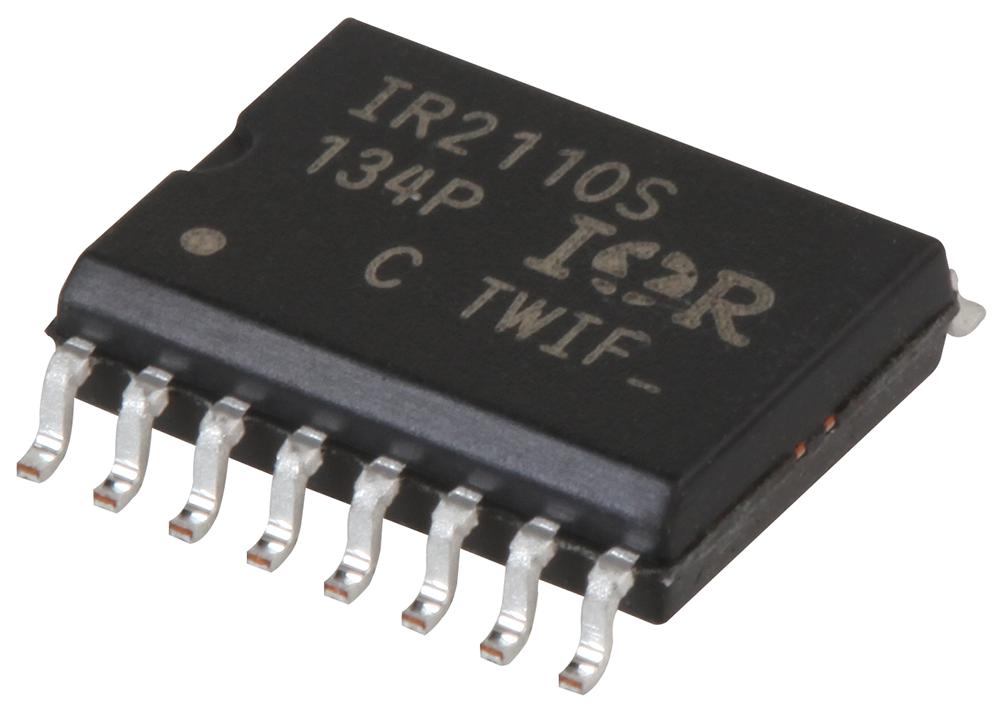

INFINEON - IR2110SPBF - Dual Driver IC, High Side And Low Side, 10V-20V Supply, 2.5A Out, 94ns Delay, SOIC-16
- Driver Configuration: High Side and Low Side
- Peak Output Current: 2.5A
- Supply Voltage Min: 10V
- Supply Voltage Max: 20V
- Driver Case Style: SOIC
- No. of Pins: 16Pins
- Input Delay: 120ns
- Output Delay: 94ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: IR2110
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 2110
- Device Type: High Side, Low Side
- Logic Function Number: 2110
- Module Configuration: High Side, Low Side
- No. of Outputs: 2Outputs
- Offset Voltage: 500V
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 520V
- Power Dissipation Pd: 1.25W
- Supply Voltage Range: 10V to 20V
- Termination Type: Surface Mount Device
