Description

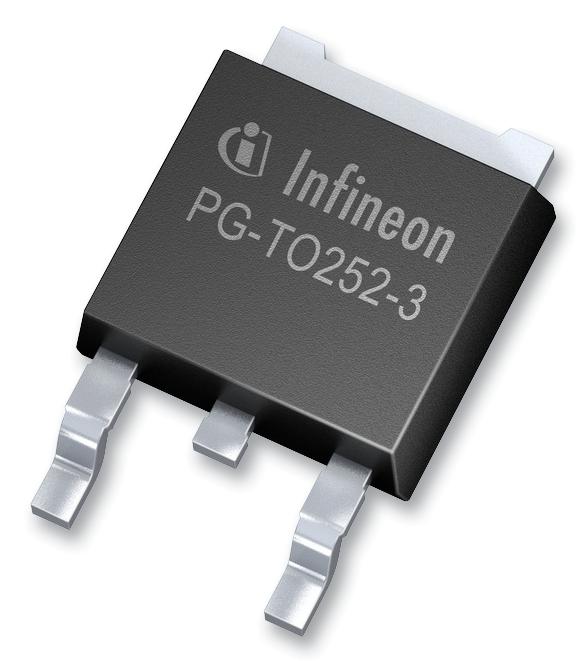

INFINEON - IPD040N03LGATMA1 - Power MOSFET, N Channel, 30 V, 90 A, 0.0033 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 90A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.0033ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 2.2V
- Power Dissipation Pd: 79W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: OptiMOS 3 Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
