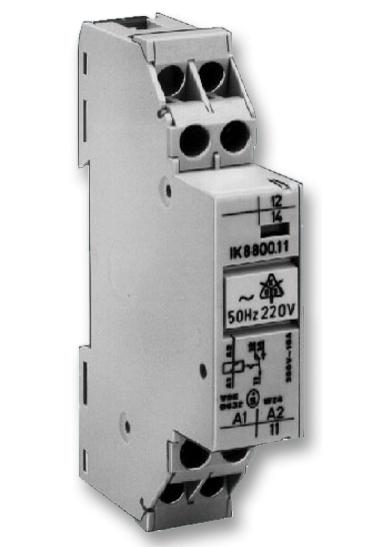

DOLD - IK 8800.11 AC 50HZ 230V - General Purpose Relay, IK 8800 Series, Power, SPDT, 230 VAC, 16 A
- Contact Configuration: SPDT
 - Coil Voltage: 230VAC
 - Contact Current: 16A
 - Product Range: IK 8800 Series
 - Relay Mounting: DIN Rail
 - Coil Type: AC
 - Contact Voltage VAC: 230VAC
 - Relay Terminals: Screw
 - Contact Voltage VDC: -
 - Contact Material: -
 - Coil Resistance: -
 - SVHC: No SVHC (15-Jan-2018)
 - Approval Bodies: EN, IEC
 - Coil Voltage VAC Nom: 230V
 - Contact Current AC Max: 16A
 - Contact Current Max: 16A
 - Contact Voltage AC Max: 400V
 - Contact Voltage AC Nom: 230V
 - Current Rating: 16A
 - External Depth: 58mm
 - External Height: 89mm
 - External Length / Height: 89mm
 - External Width: 17.5mm
 - Nom Operating Power: 4.2W
 - Operating Temperature Max: 45°C
 - Operating Temperature Min: -20°C
 - Relay Type: Power
 - Type: 0009282
