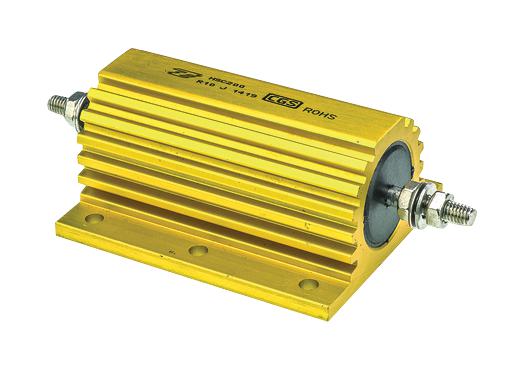

HSC2006R8J Resistor, 200W 5% 6R8 CGS - Te Connectivity

CGS - TE CONNECTIVITYSKU: HSC2006R8J Order code: 272711

Price:
Sale price€66,76

Tax included Shipping calculated at checkout

Stock:
In stock (35 units), ready to be shipped

Documents et téléchargements

Description

CGS - TE CONNECTIVITY - HSC2006R8J - Resistor, Stud, 6.8 ohm, HS Series, 200 W, ± 5%, Threaded Stud, 1.9 kV

  • Resistance: 6.8ohm
  • Product Range: HS Series
  • Power Rating: 200W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Threaded Stud
  • Voltage Rating: 1.9kV
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 50ppm/°C
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 45mm
  • External Length / Height: 90mm
  • External Width: 73mm
  • Fixing Centres LxW: 57.2x70
  • Full Power Rating Temperature: 20°C
  • Insulation Resistance: 10000mohm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 250°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +250°C
  • Resistor Mounting: Panel
  • Temperature Coeff. +: 50ppm/°C
  • Temperature Coeff. -: 50ppm/°C
  • Temperature Rise: 0.75°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating VAC: 1900V
