HRS1KH-S DC12V Relay, Signal, SPDT, 120VAC, 24Vdc, 3a multicomp Pro

MULTICOMP PROSKU: HRS1KH-S DC12V Order code: 9480307

Price:
Sale price€2,78

Tax included Shipping calculated at checkout

Stock:
In stock (342 units), ready to be shipped

Documents et téléchargements

Description

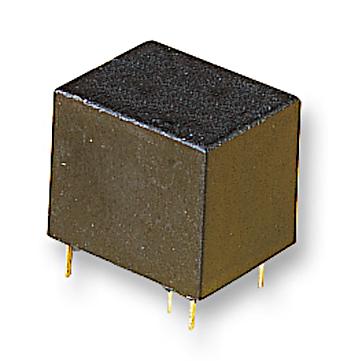

MULTICOMP PRO - HRS1KH-S DC12V - Signal Relay, 12 VDC, SPDT, 3 A, HRS1K, Through Hole

  • Coil Voltage: 12VDC
  • Contact Configuration: SPDT
  • Contact Current: 3A
  • Product Range: HRS1K Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Relay Terminals: Solder
  • Contact Voltage VAC: 120V
  • Contact Voltage VDC: 24V
  • Contact Material: Silver Alloy
  • Coil Resistance: 720ohm
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 1A
  • Contact Current DC Max: 1A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 120V
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Max: 24V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 200mW
  • External Depth: 10.5mm
  • External Height: 11.8mm
  • External Length / Height: 11.8mm
  • External Width: 15.5mm
  • Insulation Resistance: 100Mohm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Relay Type: PCB
  • Release Time: 5ms
