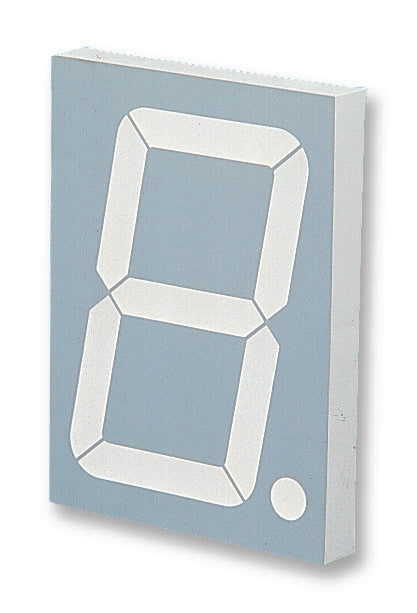

BROADCOM - HDSP-U203 - 7 Segment LED Display, Red, 20 mA, 2 V, 5.39 mcd, 1, 8 mm
- LED Colour: Red
- Forward Current If: 20mA
- Forward Voltage: 2V
- Luminous Intensity: 5.39mcd
- No. of Digits / Alpha: 1
- Character Size: 8mm
- Common Connection: Common Cathode
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Character Type: 8.
- Current If Luminous Intensity: 20mA
- External Depth: 5mm
- External Length / Height: 11mm
- External Width: 7.1mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2V
- Forward Voltage per Segment @ If: 2V
- Lead Spacing: 2mm
- Luminous Intensity per Segment @ If Typ: 5.39mcd
- Nom Current If per Segment: 20mA
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +105°C
- PIV Max: 3V
- Row Pitch: 5.3mm
