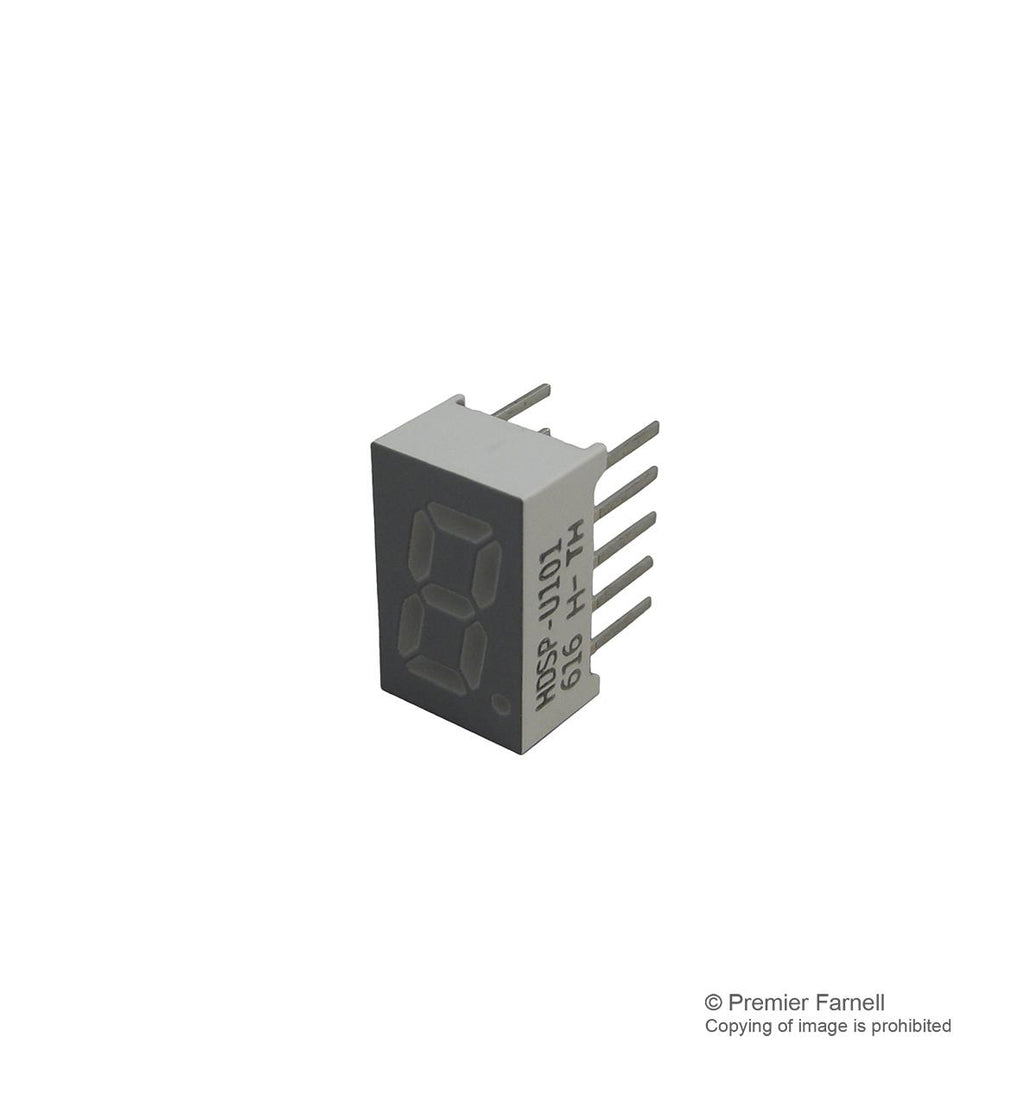

BROADCOM - HDSP-U101 - 7 Segment LED Display, Red, 20 mA, 1.8 V, 3.6 mcd, 1, 8 mm
- LED Colour: Red
- Forward Current If: 20mA
- Forward Voltage: 1.8V
- Luminous Intensity: 3.6mcd
- No. of Digits / Alpha: 1
- Character Size: 8mm
- Common Connection: Common Anode
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Character Type: 8.
- Current If Luminous Intensity: 1mA
- External Depth: 5mm
- External Length / Height: 11mm
- External Width: 7.1mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 1.6V
- Forward Voltage per Segment @ If: 1.6V
- Lead Spacing: 2mm
- Luminous Intensity per Segment @ If Max: 3.6mcd
- Luminous Intensity per Segment @ If Min: 0.6mcd
- Nom Current If per Segment: 1mA
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +105°C
- PIV Max: 3V
- Row Pitch: 5.3mm
