HDSP-K121 LED Display, Dual, 0.56", Red BROADCOM

BROADCOMSKU: HDSP-K121 Order code: 1003291

Price:
Sale price€10,83

Tax included Shipping calculated at checkout

Stock:
In stock (492 units), ready to be shipped

Documents et téléchargements

Description

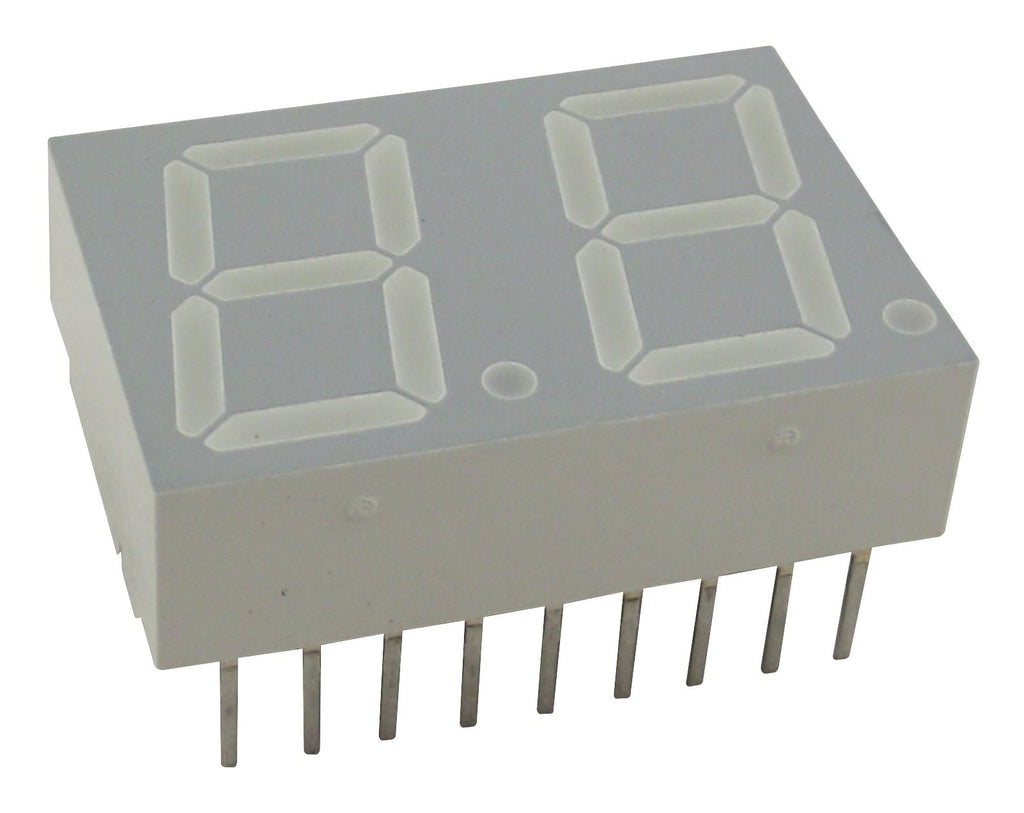

BROADCOM - HDSP-K121 - 7 Segment LED Display, Red, 20 mA, 1.8 V, 4.2 mcd, 2, 14.22 mm

  • LED Colour: Red
  • Forward Current If: 20mA
  • Forward Voltage: 1.8V
  • Luminous Intensity: 4.2mcd
  • No. of Digits / Alpha: 2
  • Character Size: 14.22mm
  • Common Connection: Common Anode
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Background Colour: Grey
  • Character Type: 2 Digit, 7 segment RDP
  • Current If Luminous Intensity: 5mA
  • External Depth: 8mm
  • External Length / Height: 17.02mm
  • External Width: 25.15mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 1.6V
  • Forward Voltage per Segment @ If: 1.6V
  • Lead Spacing: 2.54mm
  • Luminous Intensity per Segment @ If Typ: 4.2mcd
  • Nom Current If per Segment: 1mA
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +105°C
  • Row Pitch: 15.24mm
