Description

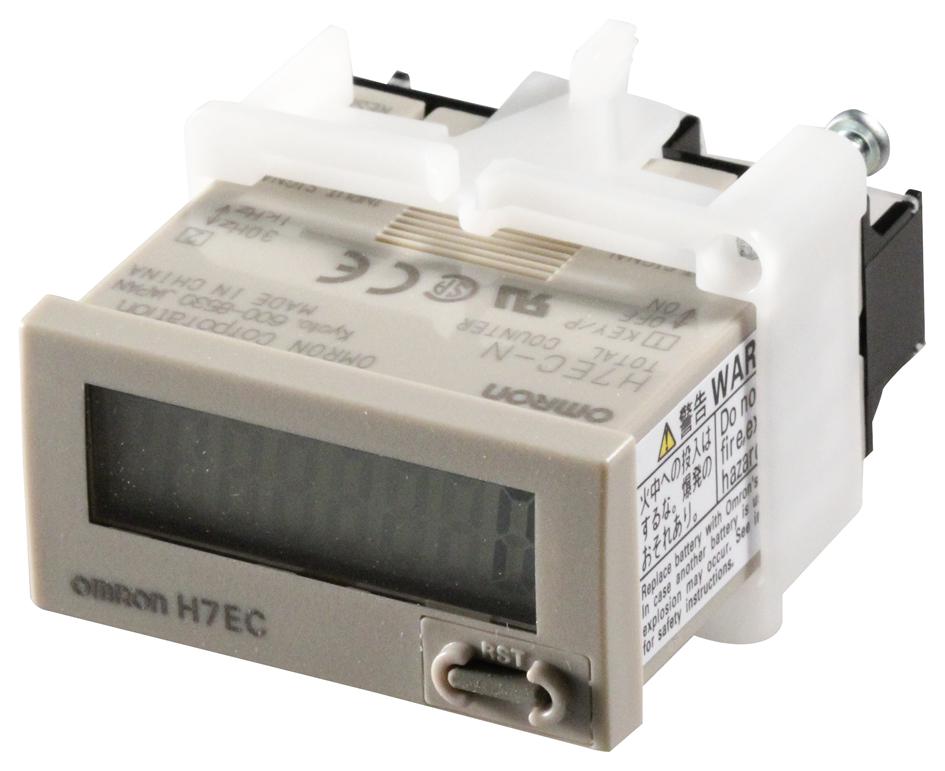

OMRON - H7EC-NV - Totalizer, LCD, Backlight, H7EC Series, 8 Digits, Self Powered, Dual Input Speed
- No. of Digits / Alpha: 8
- Digit Height: 8.6mm
- Supply Voltage Min: -
- Supply Voltage Max: -
- Panel Cutout Height: 22.2mm
- Panel Cutout Width: 45mm
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Count Speed Max: 1kHz
- Counting Speed: 1kHz
- Display Scan Rate Max: 1kHz
- Display Scan Rate Min: 30Hz
- External Depth: 48.5mm
- External Length / Height: 24mm
- External Width: 48mm
- Operating Temperature Range: -10°C to +55°C
- Power Consumption: 300mW
