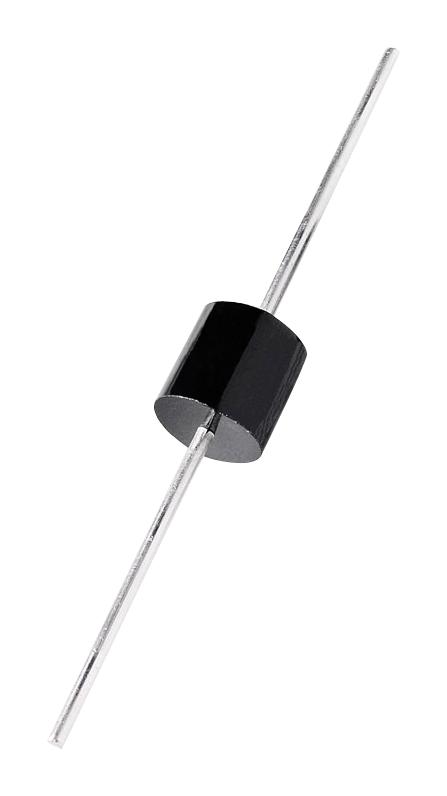

GI752-e3/73 Diode, Standard, 6a, 200V Vishay

VISHAYSKU: GI752-E3/73 Order code: 9549650

Price:
Sale price€1,44

Tax included Shipping calculated at checkout

Stock:
In stock (5696 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - GI752-E3/73 - Standard Recovery Diode, 200 V, 6 A, Single, 1.25 V, 2.5 µs, 400 A

  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 6A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.25V
  • Reverse Recovery Time trr Max: 2.5µs
  • Forward Surge Current Ifsm Max: 400A
  • Operating Temperature Max: 150°C
  • Diode Case Style: P600
  • No. of Pins: 2Pins
  • Product Range: GI752 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 400A
  • Device Marking: GI752
  • Diode Polarity: Cathode
  • Diode Type: Standard Recovery
  • Forward Voltage: 1.25V
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -50°C
  • Operating Temperature Range: -50°C to +150°C
  • Reverse Recovery Time trr Typ: 2.5µs
