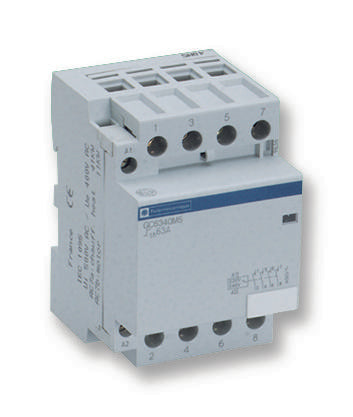

SCHNEIDER ELECTRIC - GC2540M5 - Contactor, DIN Rail, 4PST, 4 Pole, 4 kW
- Load Current Inductive: -
- Relay Mounting: DIN Rail
- Operating Voltage: -
- Contact Configuration: 4PST
- No. of Poles: 4 Pole
- Switching Power AC3: 4kW
- Switching Current AC1: 25A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: -
- Switching Power AC1: 1.1kW
- Load Current Resistive: -
- Switching Current AC3: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Coil Holding Power: 4.6VA
- Coil Pull-in Power: 34VA
- Coil Type: AC
- Coil Voltage Max: 415VAC
- Coil Voltage Min: 230VAC
- Contact Current AC Max: 25A
- Contact Current Max: 25A
- Contact Voltage AC Max: 415V
- Contact Voltage AC Nom: 250V
- Contactor Direction: Non-Reversing
- External Depth: 65mm
- External Length / Height: 81mm
- External Width: 35mm
- Main Contact Current AC1 Max: 25A
- Module Width: 2
- Operating Frequency: 50Hz
- Relay Type: Contactor
- Switch Current Max: 68A
- Switching Current Max: 68A
