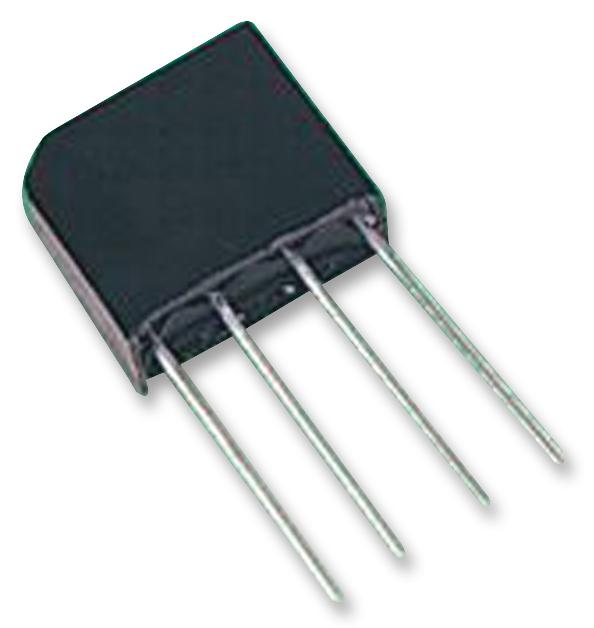

GBU4J-e3/51 Bridge Rectifier, 4A, 600v Vishay

VISHAYSKU: GBU4J-E3/51 Order code: 9549455

Price:
Sale price€3,77

Tax included Shipping calculated at checkout

Stock:
In stock (886 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - GBU4J-E3/51 - Bridge Rectifier, Single Phase, 600 V, 4 A, SIP, 4 Pins, 1 V

  • No. of Phases: Single Phase
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Forward Current If(AV): 4A
  • Bridge Rectifier Case Style: SIP
  • Forward Voltage VF Max: 1V
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: GBU4J Series
  • SVHC: Lead (15-Jan-2019)
  • Ambient Temperature Ta: 40°C
  • Body Height Max: 18.8mm
  • Device Marking: GBU4J
  • Diode Configuration: Dual Independent
  • Diode Mounting Type: Through Hole
  • Diode Type: Bridge Rectifier
  • External Depth: 3.56mm
  • External Length / Height: 18.8mm
  • External Width: 22.3mm
  • Flammability Rating: UL
  • Forward Surge Current Ifsm Max: 150A
  • Lead Spacing: 5.1mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Output Current Max: 4A
  • RMS Input Voltage: 420V
