Description

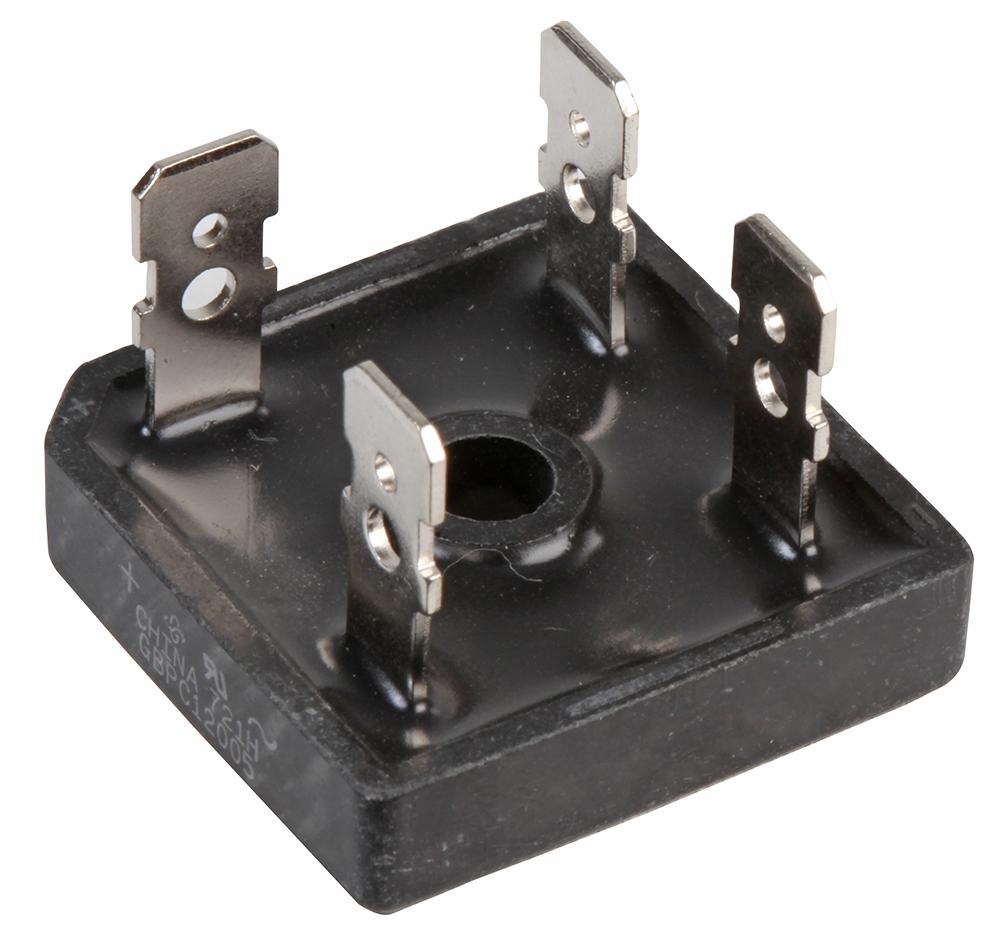

VISHAY - GBPC1204-E4/51 - Bridge Rectifier, Single Phase, 400 V, 12 A, Module, 4 Pins, 1.1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 12A
- Bridge Rectifier Case Style: Module
- Forward Voltage VF Max: 1.1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: GBPC1 Series
- SVHC: Lead (15-Jan-2019)
- Body Height Max: 7.62mm
- Case Temperature Tc: 55°C
- Current Temperature: 55°C
- Device Marking: GBPC1204
- Diode Configuration: Dual Independent
- Diode Mounting Type: Quick Connect
- Diode Type: Bridge Rectifier
- External Depth: 28.8mm
- External Length / Height: 7.62mm
- External Width: 28.8mm
- Fixing Hole Diameter: 5.6mm
- Flammability Rating: UL
- Forward Surge Current Ifsm Max: 200A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Output Current Max: 12A
- RMS Input Voltage: 280V
- Voltage Rating VAC: 280V
