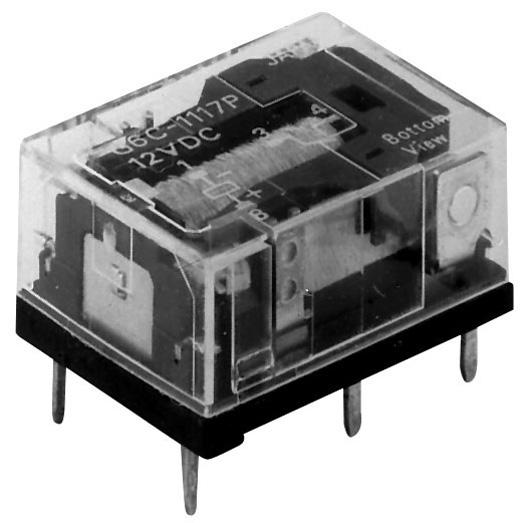

OMRON - G6C-1114P-US DC12 - General Purpose Relay, G6C Series, Power, Non Latching, SPST-NO, 12 VDC, 10 A
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Contact Current: 10A
- Product Range: G6C Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 720ohm
- SVHC: No SVHC (17-Dec-2015)
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 16.7mA
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 20mm
- External Height: 9.91mm
- External Length / Height: 9.91mm
- External Width: 14.99mm
- Nom Operating Power: 200mW
- Relay Type: Power - General Purpose
