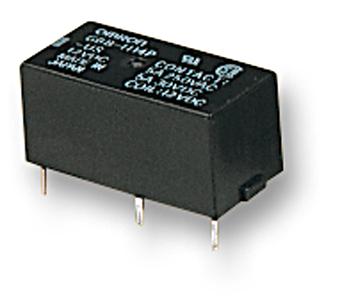

OMRON - G6B-1114P-US DC12 - General Purpose Relay, G6B Series, Power, Non Latching, SPST-NO, 12 VDC, 5 A
- Contact Configuration: SPST-NO
 - Coil Voltage: 12VDC
 - Contact Current: 5A
 - Product Range: G6B Series
 - Relay Mounting: Through Hole
 - Coil Type: Non Latching
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: 30VDC
 - Contact Material: Silver Alloy
 - Coil Resistance: 720ohm
 - Approval Bodies: CSA, UL
 - Approvals & Standards: CSA, UL
 - Coil Current: 16.7mA
 - Coil Operating Lower Percent Limit: 80%
 - Coil Operating Upper Percent Limit: 110%
 - Coil Voltage VDC Nom: 12V
 - Contact Current AC Max: 5A
 - Contact Current DC Max: 5A
 - Contact Current Max: 5A
 - Contact Voltage AC Max: 250V
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Max: 30V
 - Contact Voltage DC Nom: 30V
 - DC Coil Power: 200mW
 - External Depth: 10mm
 - External Height: 20mm
 - External Length / Height: 20mm
 - External Width: 10mm
 - Nom Operating Power: 200mW
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -25°C
 - Operating Time: 10ms
 - Relay Type: Power
 - Release Time: 10ms
