Description

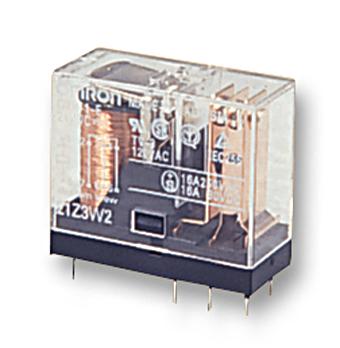

OMRON - G2R-1A-E DC5 - General Purpose Relay, G2R Series, Power, Non Latching, SPST-NO, 5 VDC, 10 A
- Contact Configuration: SPST-NO
- Coil Voltage: 5VDC
- Contact Current: 10A
- Product Range: G2R Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 47ohm
- Approvals & Standards: CSA, IEC, UL, VDE
- Coil Current: 106mA
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 16A
- Contact Voltage AC Nom: 380V
- Contact Voltage DC Nom: 125V
- External Depth: 29mm
- External Height: 25.5mm
- External Width: 13mm
- Nom Operating Power: 530mW
- Relay Type: Power
