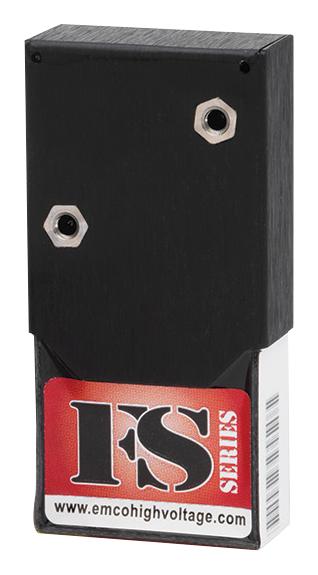

XP POWER - FS30-12 - High Voltage DC/DC Converter, Proportional, Positive Output, Fixed, Adjustable, 10 W, 3.33 mA
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 3kV
- Output Current - Output 1: 3.33mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Product Range: FS Series
- Polarity: Positive Output
- DC / DC Converter Output Type: Fixed, Adjustable
- Input Voltage DC Min: 700mV
- Input Voltage DC Max: 12V
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 28.5mm
- Height: 12.7mm
- Depth: 57.15mm
- SVHC: No SVHC (15-Jan-2018)
