Description

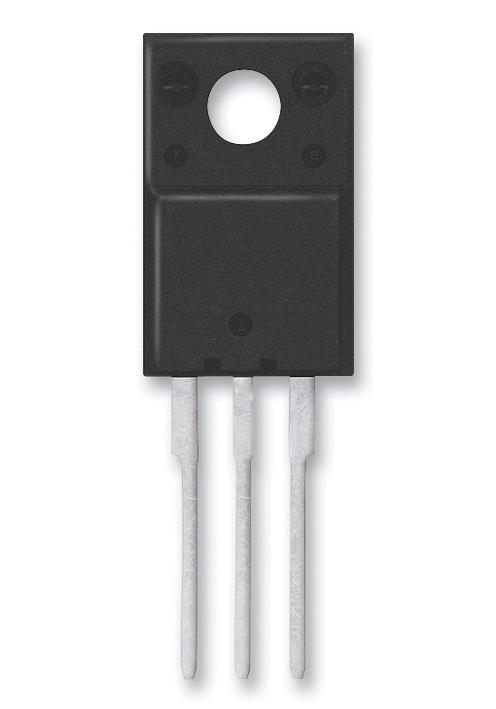

ONSEMI - FQPF13N50CF - Power MOSFET, N Channel, 500 V, 13 A, 0.43 ohm, TO-220F, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 13A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.43ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 48W
- Transistor Case Style: TO-220F
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
