Description

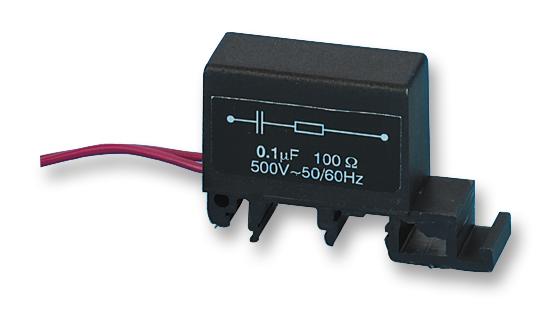

LCR COMPONENTS - FP005 - Surge Protector, Mains
- Product Range: -
- Suppressor Type: Mains
- No. of Outlets: -
- Outlet Type: -
- Voltage Rating: 500Vrms
- Output Current: -
- Peak Surge Current: -
- Response Time: -
- SVHC: No SVHC (15-Jan-2019)
- AC Power: 4W
- Capacitance: 0.1µF
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance +: 10%
- Capacitance Tolerance -: -10%
- Connector Type: Wire Leaded
- Control Voltage AC Max: 500V
- External Depth: 40mm
- External Length / Height: 43mm
- External Width: 19mm
- Insulation Resistance: 100Mohm
- No. of Phases: Single Phase
- Nom Operating Voltage: 500V
- Operating Frequency Max: 60Hz
- Operating Frequency Min: 50Hz
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Resistance: 470ohm
- Resistance Tolerance: ± 5%
- Resistance Tolerance +: 5%
- Resistance Tolerance -: 5%
- Resistor Power Rating: 4W
- Standard: BS5584, BS5825
- Voltage Rating VAC: 500V
