Description

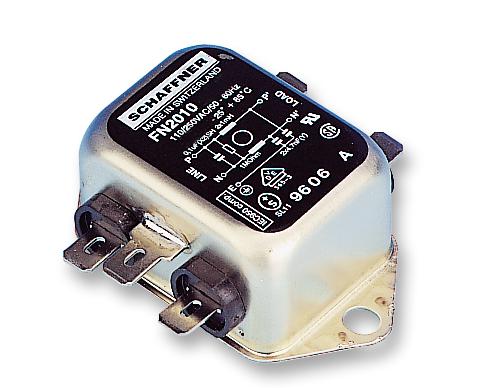

SCHAFFNER - FN2010-16-06 - Power Line Filter, Chassis, General Purpose, 250 VAC, 16 A, Single Phase, 1 Stage, Chassis Mount
- Current Rating: 16A
- Voltage Rating: 250VAC
- Filter Type: General Purpose
- Filter Terminals: Quick Connect
- Inductance Min: 700µH
- Capacitance: 0.1µF
- Leakage Current Max: 740µA
- Product Range: FN2000 Series
- SVHC: No SVHC (15-Jan-2019)
- Bleed Resistor Resistance: 1Mohm
- Capacitance X: 0.1µF
- Capacitance Y: 4.7nF
- External Depth: 71mm
- External Length / Height: 29.3mm
- External Width: 46.6mm
- Fixing Centres: 61mm
- Height: 29.3mm
- Inductance: 0.65mH
- Leakage Current: 0.4A
- No. of Phases: Single Phase
- No. of X Type Capacitors: 1
- No. of Y Type Capacitors: 2
- Standard: IEC950
- Supply Frequency Max: 400Hz
- Voltage Rating VAC: 250V
- Weight: 140g
