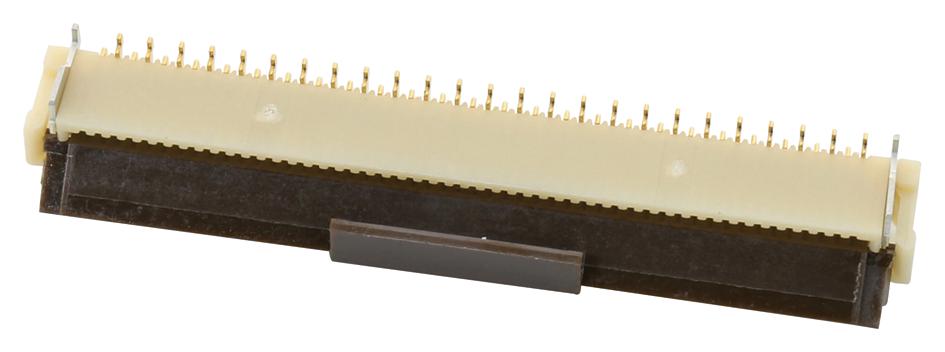

HIROSE(HRS) - FH12-50S-0.5SVA(54) - FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 50 Contacts, Receptacle, FH12, Surface Mount
- Pitch Spacing: 0.5mm
 - No. of Contacts: 50Contacts
 - Gender: Receptacle
 - Product Range: FH12 Series
 - Contact Termination Type: Surface Mount
 - Contact Position: -
 - No. of Rows: 1 Row
 - Contact Plating: Gold Plated Contacts
 - Contact Material: Phosphor Bronze
 - FFC/FPC Thickness: 0.3mm
 - SVHC: No SVHC (15-Jan-2019)
 - Colour: Beige/Dark Brown
 - Contact Resistance: 50mohm
 - Contact Termination: Surface Mount Vertical
 - Current Rating: 0.4A
 - External Depth: 4.75mm
 - External Length / Height: 4.85mm
 - External Width: 28.4mm
 - Flammability Rating: UL94V-0
 - Insulation Resistance: 500Mohm
 - Lead Spacing: 0.5mm
 - Material: Polyamide
 - No. of Mating Cycles: 20
 - No. of Rows: 1Rows
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -40°C
 - Voltage Rating VAC: 50V
 - Withstand Voltage: 150V
