Description

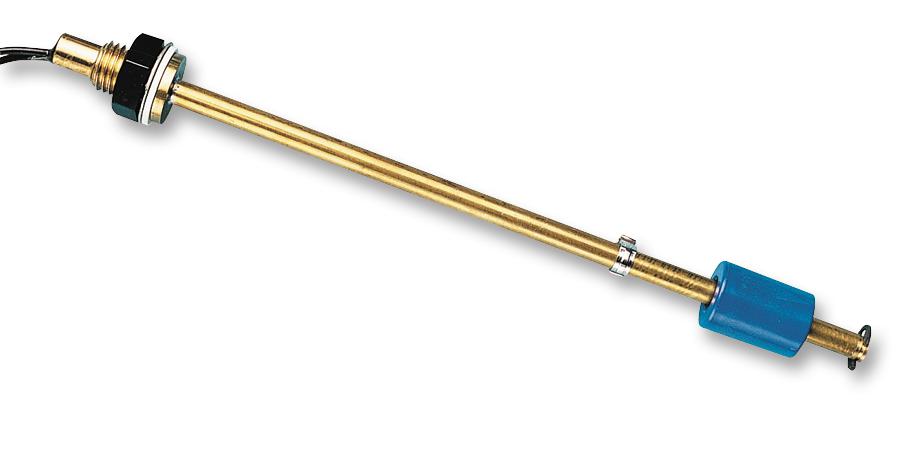

TE CONNECTIVITY - FEVS722-51 - Float Switch, EVS Series, Vertical, Extended, SPST-NC, Brass, 100 Vdc
- Operating Pressure Max: -
- Sensor Body Material: Brass
- Output Current: 300mA
- Product Range: -
- Body Material: Brass
- Contact Configuration: SPST-1NO / 1NC
- Contact Current @ Contact Voltage AC Max: 0.5A
- Contact Current AC Max: 280mA
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 100VDC
- External Length / Height: 260mm
- Fixing Hole Diameter: 23mm
- Lead Length: 0.5mm
- Material: Brass
- Operating Temperature Max: 110°C
- Operating Temperature Min: -30°C
- Power Rating: 15W
- Resistive Current Rating: 1A
- Sensor Output: SPST-NO / SPST-NC
- Specific Gravity of Liquid Min: 0.65
- Switching Voltage AC / DC Max: 100VDC
- Switching Voltage AC / DC Min: 250VAC
