Description

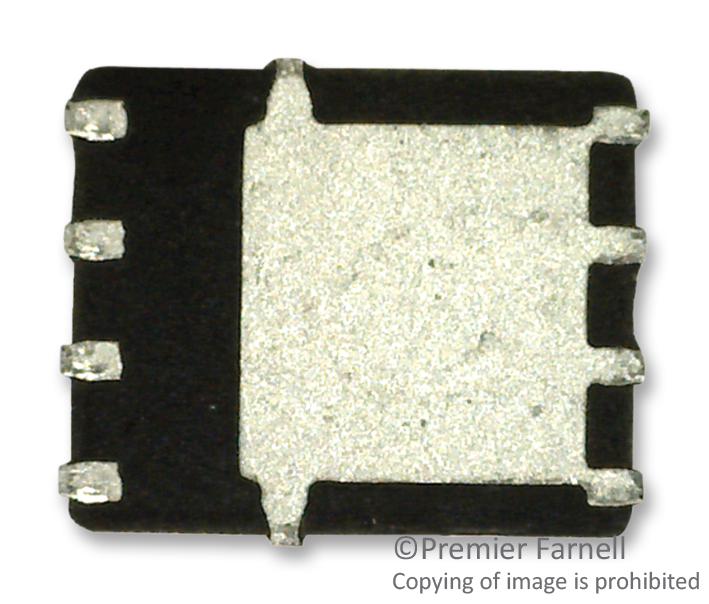

ONSEMI - FDMS3572 - Power MOSFET, N Channel, 80 V, 8.8 A, 0.0165 ohm, Power 56, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 8.8A
- Drain Source Voltage Vds: 80V
- On Resistance Rds(on): 0.0165ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.2V
- Power Dissipation Pd: 2.5W
- Transistor Case Style: Power 56
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 8.8A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 50A
- SMD Marking: FDMS3572
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 80V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
