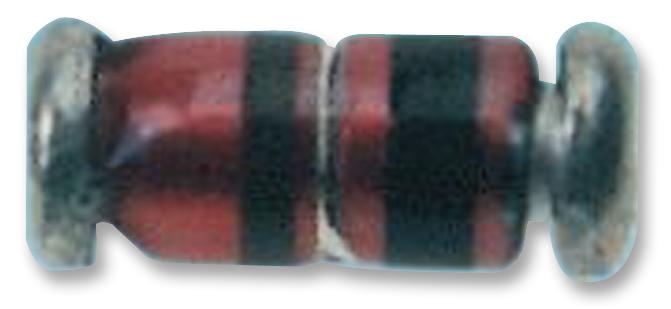

FDLL4150 Diode, Fast, 0.2A, 50V, LL34 ONSEMI

ONSEMISKU: FDLL4150 Order code: 1467560

Price:
Sale price€0,46

Tax included Shipping calculated at checkout

Stock:
In stock (7979 units), ready to be shipped

Documents et téléchargements

Description

ONSEMI - FDLL4150 - Small Signal Diode, Single, 50 V, 200 mA, 1 V, 6 ns, 4 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 50V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 6ns
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 175°C
  • Diode Case Style: DO-213AC
  • No. of Pins: 2Pins
  • Product Range: FDLL4 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Current Ifsm: 1A
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +200°C
  • Termination Type: Surface Mount Device
