Description

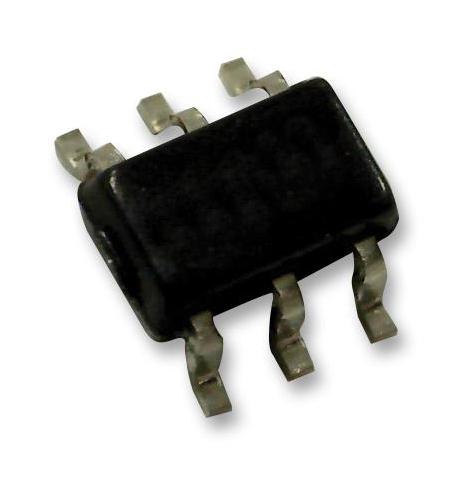

ONSEMI - FDC608PZ - Power MOSFET, P Channel, 20 V, 5.8 A, 0.026 ohm, SuperSOT, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 5.8A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.026ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 1.6W
- Transistor Case Style: SuperSOT
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: -5.8A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds: -20V
- Voltage Vds Typ: -20V
- Voltage Vgs Max: -12V
- Voltage Vgs Rds on Measurement: -4.5V
- Voltage Vgs th Max: -1.5V
