Description

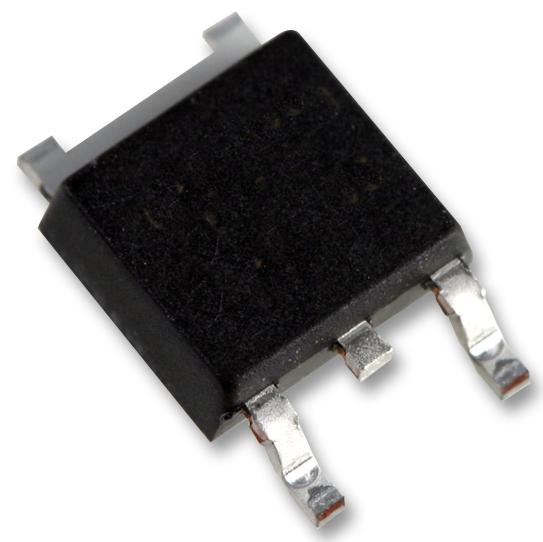

ONSEMI - FCD7N60TM - Power MOSFET, N Channel, 600 V, 7 A, 0.53 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 7A
- Drain Source Voltage Vds: 600V
- On Resistance Rds(on): 0.53ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5V
- Power Dissipation Pd: 83W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (27-Jun-2018)
- Alternate Case Style: TO-252
- Current Id Max: 7A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 21A
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 600V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 5V
- Voltage Vgs th Min: 3V
