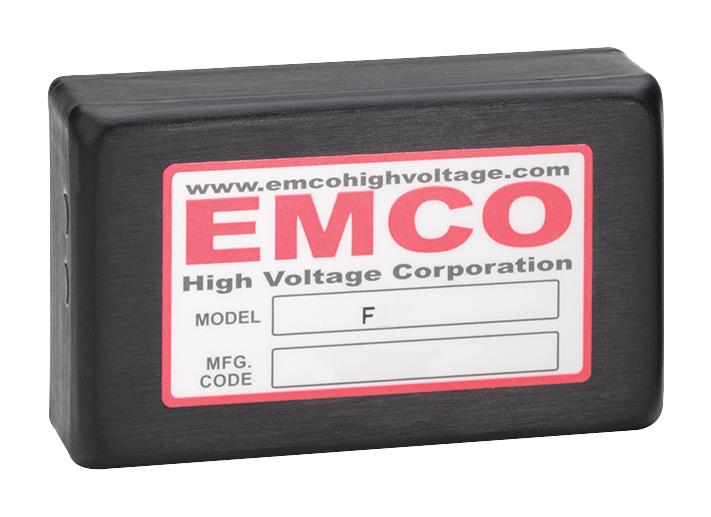

XP POWER - F60CT - High Voltage DC/DC Converter, Proportional, Dual Output, Fixed, Adjustable, 10 W, 1.66 mA
- No. of Outputs: 2 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 3kV
- Output Current - Output 1: 1.66mA
- Output Voltage - Output 2: -3kV
- Output Current - Output 2: 1.66mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: F Series
- Input Voltage DC Min: 0V
- Input Voltage DC Max: 15V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 43.18mm
- Height: 21.6mm
- Depth: 71.2mm
- SVHC: No SVHC (15-Jan-2018)
