Description

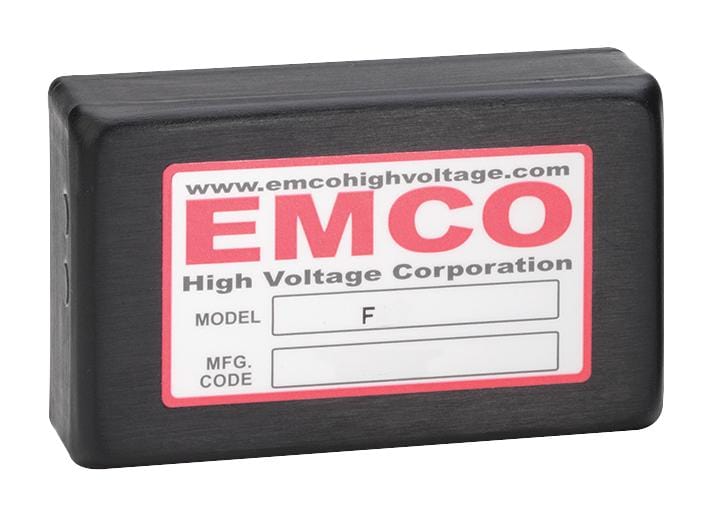

XP POWER - F40 - High Voltage DC/DC Converter, Proportional, Positive Output, Fixed, Adjustable, 10 W, 2.5 mA
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 4kV
- Output Current - Output 1: 2.5mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: F Series
- Input Voltage DC Min: 0V
- Input Voltage DC Max: 15V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 43.18mm
- Height: 21.6mm
- Depth: 71.2mm
- SVHC: No SVHC (15-Jan-2018)
