Description

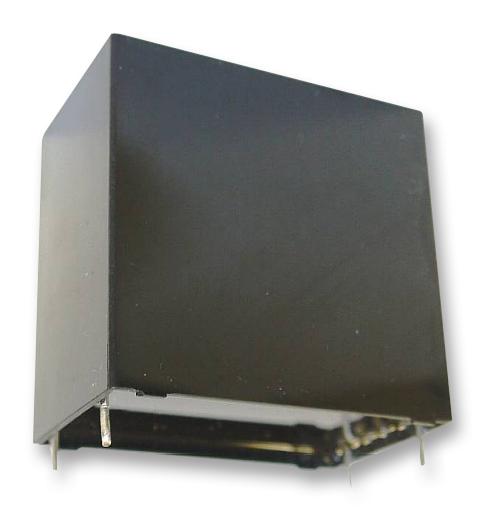

PANASONIC - EZPE80156MTA - Power Film Capacitor, Metallized PP, Radial Box - 4 Pin, 15 µF, ± 10%, DC Link, Through Hole
- Capacitance: 15µF
- Voltage Rating: 800V
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 10%
- Product Range: EZPE Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- ESR: 0.0105ohm
- Operating Temperature Range: -40°C to +85°C
- Voltage Rating V DC: 800V
