EVQ9P6B40 Switch, 4X4MM, 2.4N Panasonic

PANASONICSKU: EVQ9P6B40 Order code: 2079573

Price:
Sale price€0,66

Tax included Shipping calculated at checkout

Stock:
In stock (6251 units), ready to be shipped

Documents et téléchargements

Description

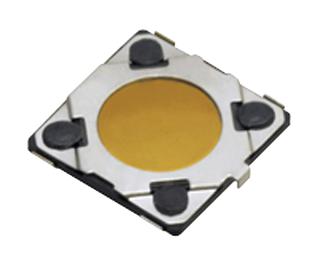

PANASONIC - EVQ9P6B40 - Tactile Switch, EVQ9P6, Top Actuated, Surface Mount, Round Button, 240 gf, 20mA at 15VDC

  • Product Range: EVQ9P6 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 240gf
  • Contact Rating: 20mA at 15VDC
  • Switch Dimensions (L x W): 4.1mm x 4.1mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Top
  • Contact Configuration: SPST-NO
  • Contact Current Max: 20mA
  • Contact Voltage DC Nom: 15V
  • Operating Force: 2.4N
  • Switch Terminals: Solder
