Description

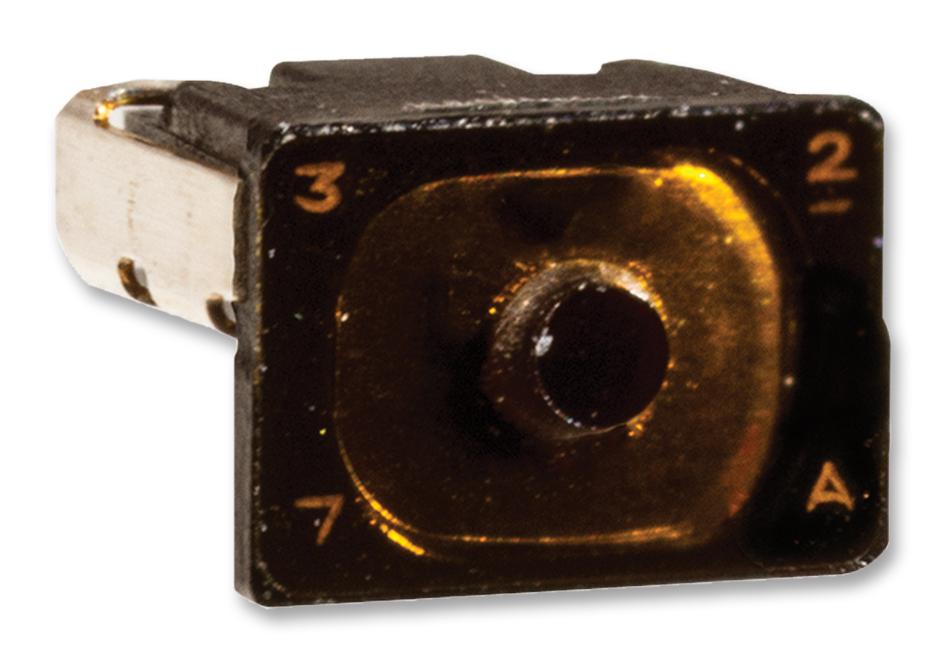

PANASONIC - EVPAVAA1A - Tactile Switch, EVPAV, Side Actuated, Edge Mount, Round Button, 160 gf, 20mA at 15VDC
- Product Range: EVPAV Series
- Actuator Orientation: Side Actuated
- Switch Mounting: Edge Mount
- Actuator Style: Round Button
- Actuating Force: 160gf
- Contact Rating: 20mA at 15VDC
- Switch Dimensions (L x W): 2.8mm x 2.3mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2018)
- Contact Current Max: 20mA
- Contact Voltage DC Nom: 15V
- Operating Force: 1.6N
- Switch Terminals: SMD
